采用低损耗高密度金属粉材料
采用热喷涂技术,电感表面致密性好
闭合磁路设计,更好的抗电磁干扰
高密度压制成型，超高工作电流
扁平线绕制，超低直流电阻

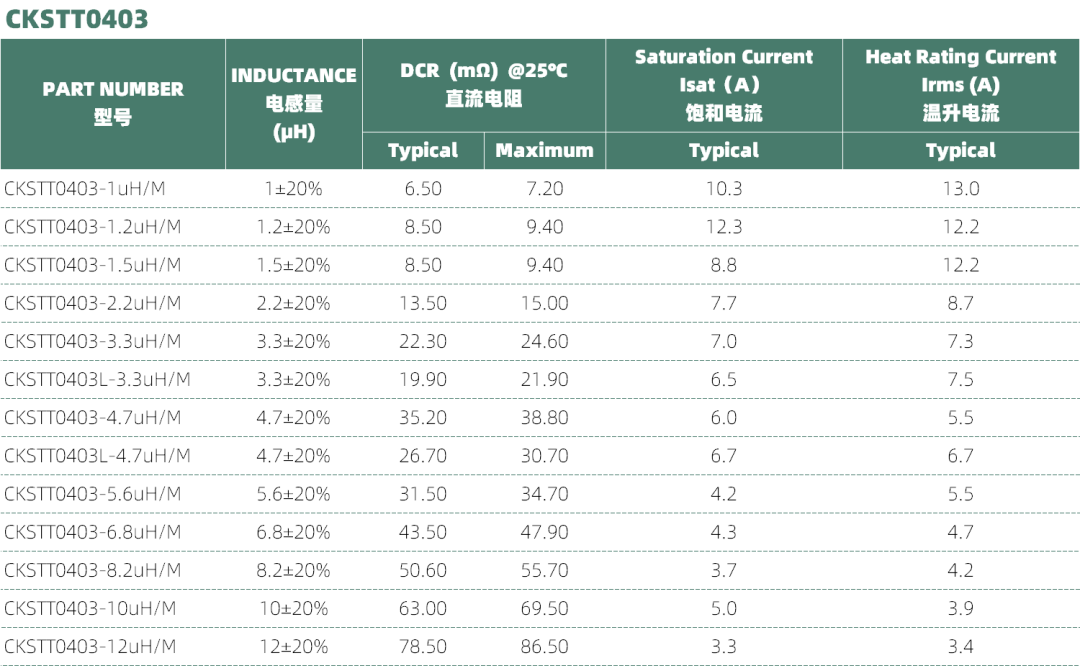

CKSTT0403
平板电脑，显示器，服务器，主板，大功率DC/DC模组

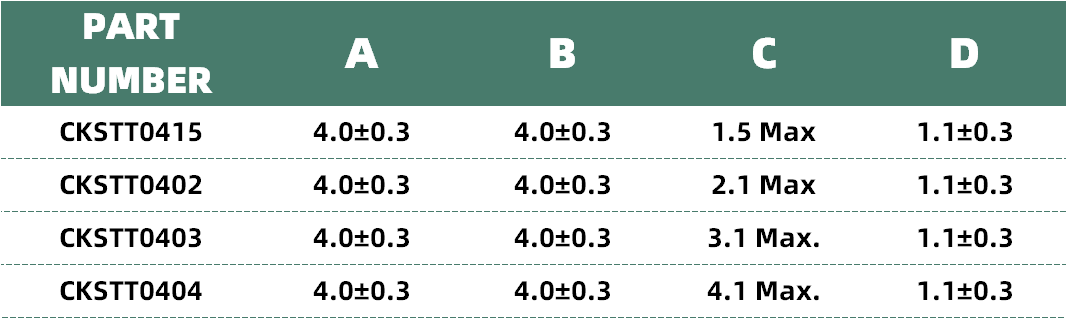

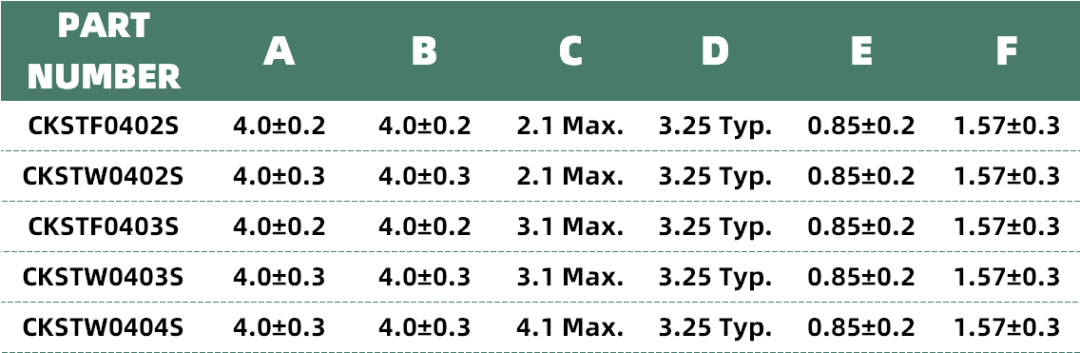

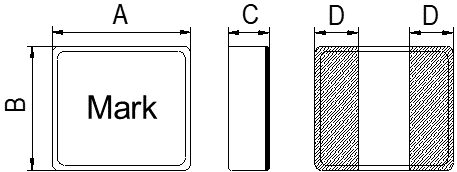

unit:mm
unit:mm

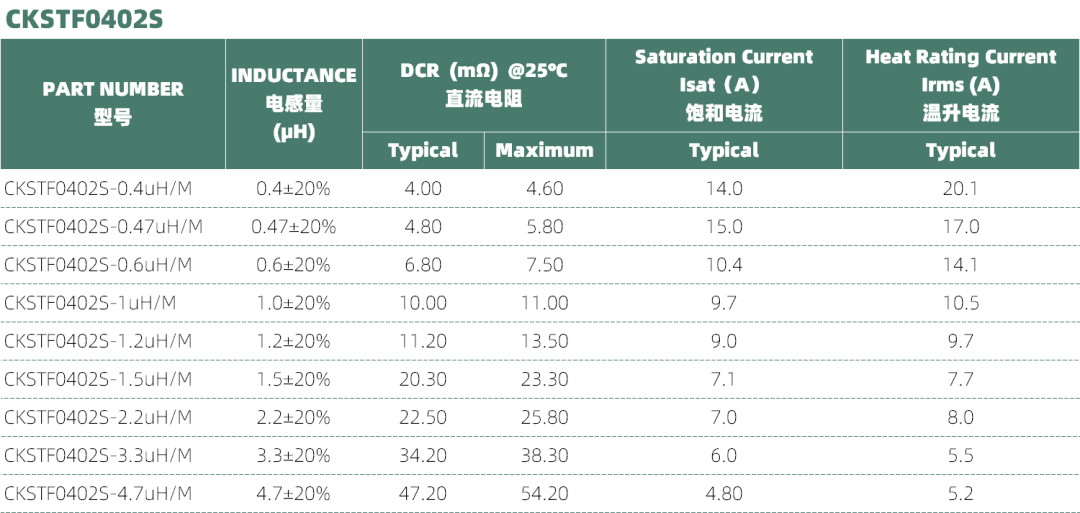

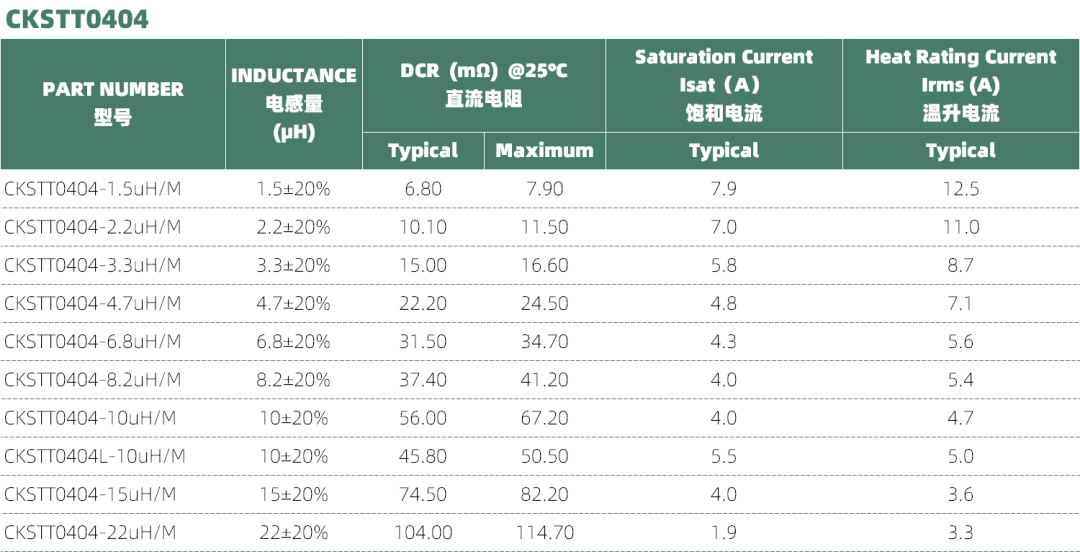

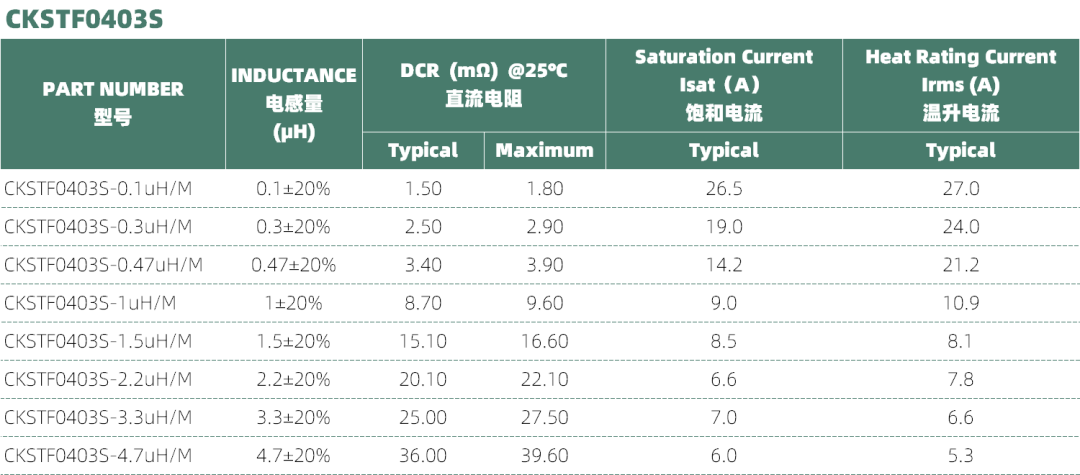

Remark:
1. All test data is reference to 25℃ ambient.
2. Test Condition：1MHz，1Vrms
3. Isat: Max.Value, DC current at which the inductance drops less than 30% from its value without current;Typ. Value, DC current at which the inductance drops 30% from its value without current.
4. Irms: For Max. Value, ΔT＜40℃；for Typ. Value, ΔT is approximate 40℃.
5. Operat between temperature range -40℃ to +125℃(Including self - temperature rise)
6. Absolute maximum voltage: DC 60V
